The MTBH Series with heavy duty design ,apply for general commercial and industrial liquid applications. Features flow through the top allows minimum headroom of unfiltered liquid and easy bag change out as well as optimum sealing of the filter bag.
The housing in stainless steel casting cover with 1/4” air vent and 1/2” drain port, and have a high performance by using all casting components.
The shell material available in grade SS304 and SS316L material of construction for selection.And glass bead blasting finishing as standard, meantime,poly coat , electro-polishing is option.
The standard inlet and outlet method is side in and bottom out.

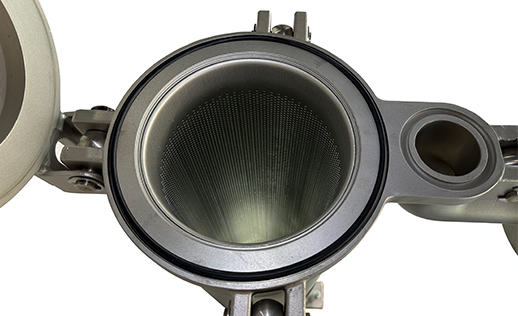

As standard, the MTBH series is provided with heady duty adjustable mounting bracket support legs and SS filter basket supplied to support for the filter bag.
Specifications：
> Max. Operating pressure: 150 psi (10 bars) at 212℉(100℃)；
> Max. Operating temperature: 212℉(100℃)；
> Seal Material: standard Buna‐N (EPDM/Viton/Teflon is option);
> Finishing: standard glass bead blasting (poly coat /electro‐polishing is option);
> Connections: Standard RF Flange (NPT/BSP/Victaulic coupling/ is option);
> Filter bag size: #1 and #2;
> Quantity of filter bag: 1.
