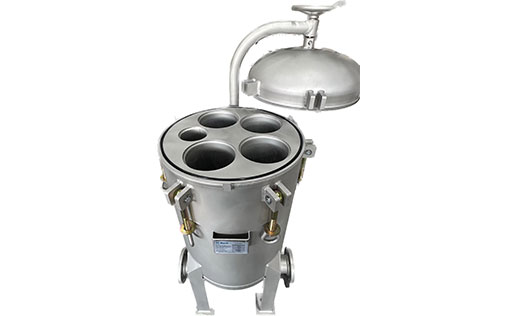

Mey Filtration offer multi bag vessels from 2 to 24 bags, per vessel with heavy duty swing bolt top closure with Davit arm and hand wheel assist cove opening for filter bag change out.
The heavy duty design for applications requiring high flow rates or a large filtration surface area applications in general industries.
This multi bag series of vessel including: economy type, standard type, and ASME type. And different standard housing model all accept size #2 filter bag with Individual bag seal to eliminate filtrate bypass.
The shell material available in grade SS304 and SS316L material of construction for selection.And glass bead blasting finishing as standard, meantime,poly coat , electro-polishing is option.
As standard, the multi bag series is provided with heady duty mounting bracket support legs and SS filter basket supplied to support for the filter bag.
Specifications:
> Max. Operating pressure: 150 psi (10 bars) at 212。F(100℃).
> Max. Operating temperature: 212。F(100℃).
> Seal Material: standard Buna‐N (EPDM/Viton/Teflon is option).
> Finishing: standard glass bead blasting (poly coat /electro‐polishing is option).
> Connections: Standard 150 Ib ANSI Flange. Side in/out in 3-8 bag housing, bottom in/out in 10-24 bag housing.
> Filter bag size: #2 (Area: 0.5m2).
> Quantity of filter bag: 3, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 and 24.
