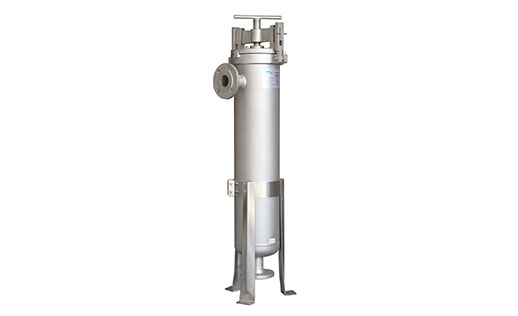

The HPBH Series bag filter housing is closed with a single point central bolt and joined by a T-shaped rod. This design provides quick opening and closing of the cover lid without the need for operators to use any tools.

The housing features an excellent sealing environment with the filter bag, and provide an excellent filtration efficiency, applies to the high-pressure environments with strict filtration requirements applications.

The shell material available in grade SS304 and SS316L material of construction for selection.And glass bead blasting finishing as standard, meantime,poly coat , electro-polishing is option.

The standard inlet and outlet method is side in and bottom out.
As standard, the HPBH series is provided with heady duty adjustable mounting bracket support legs and SS filter basket supplied to support for the filter bag.

Specifications:
>  Max. Operating pressure: 150 psi (10 bars) at 212℉(100℃)
>  Max. Operating temperature: 212℉(100℃)
>  Seal Material: standard Buna‐N (EPDM/Viton/Teflon is option).
>  Finishing: standard glass bead blasting (poly coat /electro‐polishing is option).
>  Connections: Standard RF Flange (NPT/BSP/Victaulic coupling/ is option).
>  Filter bag size: #1 and #2
>  Quantity of filter bag: 1.
